Frame HeightRequest not applied

For each of my items in the ListView, I wanted to display the title of the show and the remaining episodes.
But it can be really difficult to see the label on an image.

A solution I used in my previous Windows Phone app was to add a border with a background color. So I decided to use the same tip with the Frame control.

<Frame Grid.Row="0" HeightRequest="22" VerticalOptions="End"  BackgroundColor="#80000000" >
    <StackLayout Orientation="Horizontal">
        <Label Grid.Row="0"  Text="{Binding Title}" TextColor="#FFFFFF" Margin="5,0,0,0" LineBreakMode="TailTruncation"
                    HorizontalOptions="StartAndExpand" FontAttributes="Bold" FontSize="Subtitle"/>
        <Label Grid.Row="0"  Text="{Binding User.Remaining}" TextColor="#FFFFFF" Margin="0,0,5,0" HorizontalOptions="End"
                    FontAttributes="Bold" FontSize="Subtitle" />
    </StackLayout>
</Frame>

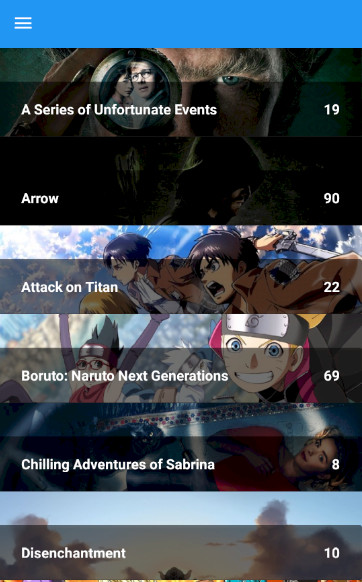

As you can see, the HeightRequest seems to be ignored. It's bigger than expected. In fact, the Frame control has a default padding of 20.

To have the expected result, you just need to set the Frame's Padding to 0.

<Frame Grid.Row="0" HeightRequest="22" VerticalOptions="End"  BackgroundColor="#80000000" Padding="0">
    <StackLayout Orientation="Horizontal">
        <Label Grid.Row="0"  Text="{Binding Title}" TextColor="#FFFFFF" Margin="5,0,0,0" LineBreakMode="TailTruncation"
                    HorizontalOptions="StartAndExpand" FontAttributes="Bold" FontSize="Subtitle"/>
        <Label Grid.Row="0"  Text="{Binding User.Remaining}" TextColor="#FFFFFF" Margin="0,0,5,0" HorizontalOptions="End"
                    FontAttributes="Bold" FontSize="Subtitle" />
    </StackLayout>
</Frame>

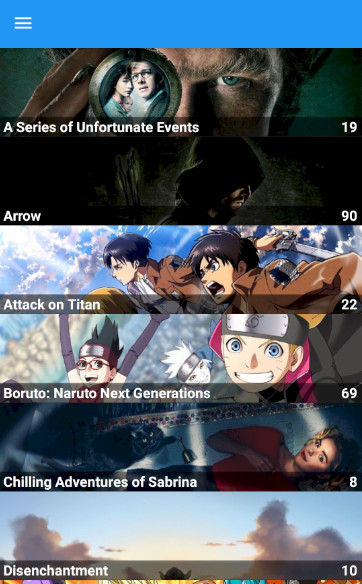

And now the HeightRequest defined is applied.
